The series that started the electric revolution! Our original Trim Tab design and still the most popular series we build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers.
All the same features of the Standard Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Boat lengths 16' (4.9 m) to 30' (9.1 m).
Features:
Softer, Smoother, Safer ride.
Lenco Electric Actuators react instantaneously unlike hydraulic tabs.
Fuel savings.
Can be installed on any boat with any engine.
Easy retrofit to boats with hydraulic tabs.
Fast and easy installation.
Built-in auto retract.
12/24 volt.

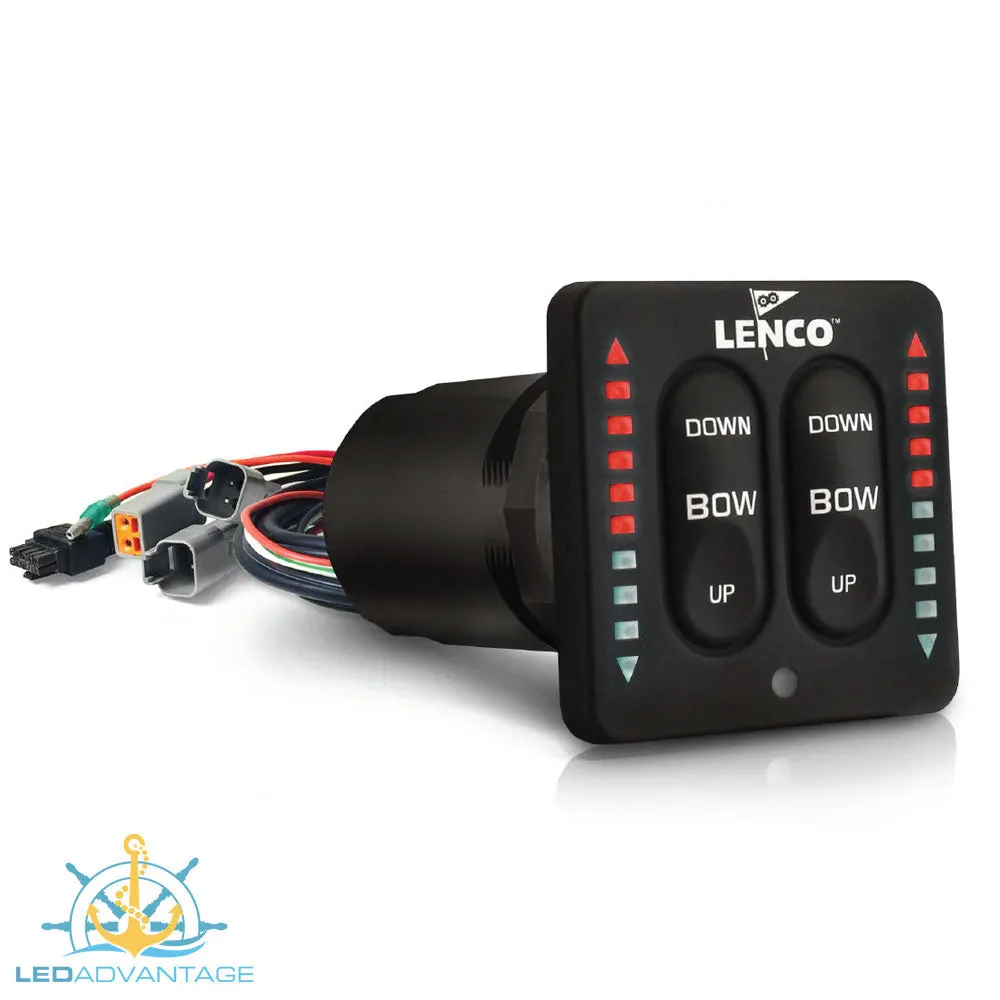

LED indicator displays the exact position of your trim tabs, Auto brightness adjusting.
Self check feature.
Waterproof key pad and solid state control box with waterproof plug and play Deutsch connectors, backlit.
36" power pigtail for control box.
What is Electro-Polishing:
Electro-Polishing is a process that improves the surface finish of our 304 stainless steel trim tab blades. Electro-Polishing delivers a smoother, more reflective surface than our standard mill finish and improves surface clean ability.
Electro-Polishing dissolves free iron, inclusions, and embedded particles from the surface of our trim tabs.
Lenco’s in-house process improves the near-surface chemistry of the material, and promotes the formation of an improved corrosion resistant surface layer.
Benefits of Electro-Polishing:
- Removes iron and potential contaminants from the surface of our trim tabs.
- Removes a small amount of material from the surface of our trim tab blades, also removing small burrs.
- Enhances the chromium and nickel content providing added resistance against environmental factors such as air, fresh and salt water.
- Polishes areas inaccessible by any other polishing methods.
- Provides a clean and smooth surface that is aesthetically pleasing.
Lenco Trim Tab Kit Manual
Lenco Full Catalogue
Width: 9" (228mm), 12" (304.9mm)
Min. Transom Height: 356mm
Approx. Boat Length: 4.3Mtr - 5.5Mtr
Finish: Electro Polished

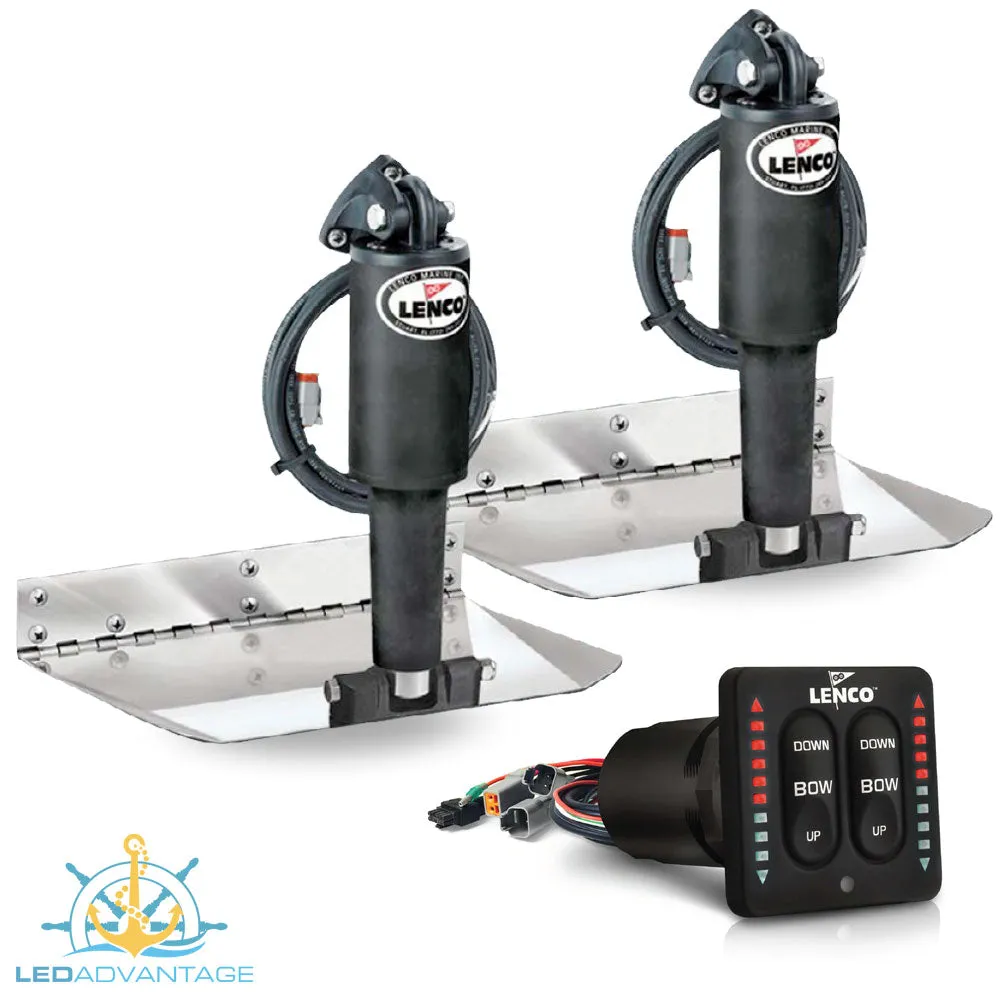

Switch Kit: LED Indicator
Volts: 12V
Hinge Height: 51mm

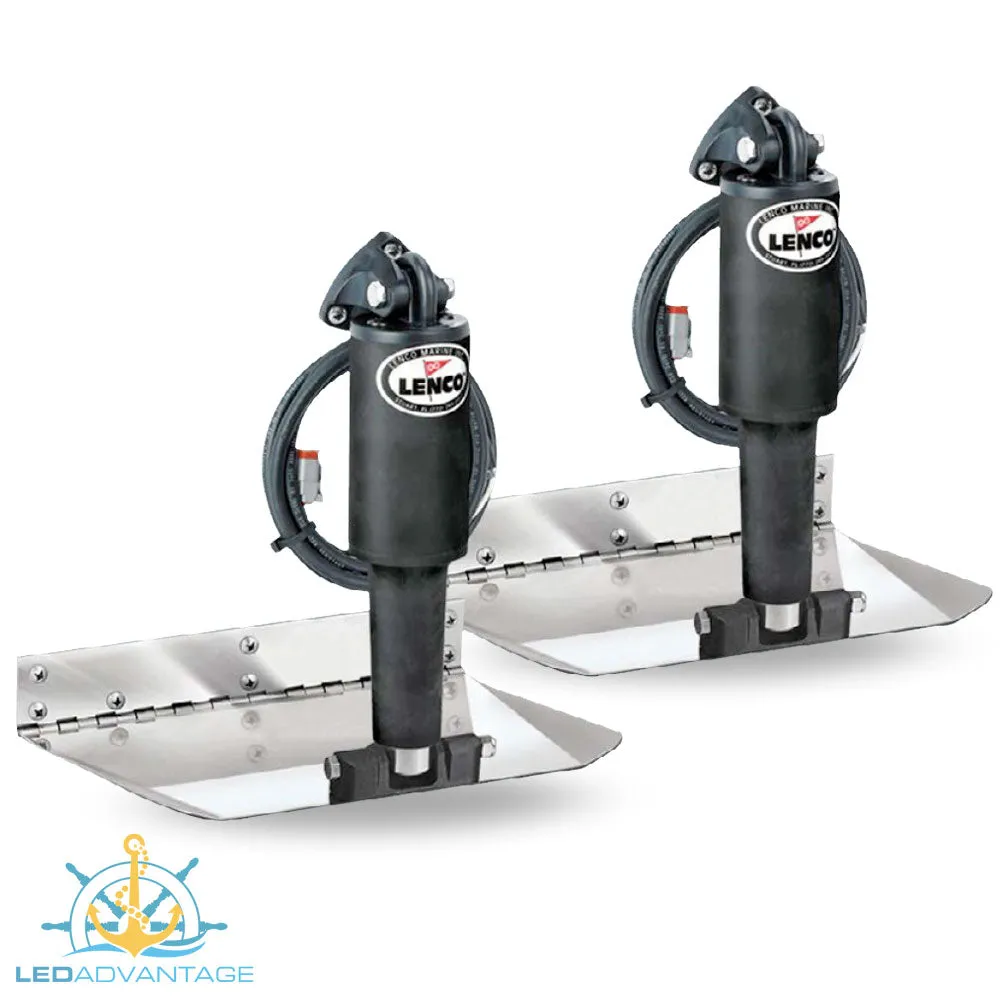

Standard Mount Trim Tab Kits:
2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8" flared trailing edge and 1/8" diameter hinge pin.
2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors.
2 x actuator extension wiring harness (6m) with Deutsch connectors.
1 x set of stainless steel fasteners.
2 x upper mounting bracket with gland seal.
2 x lower mounting bracket.
Lenco owner’s installation manual.
5 Year Warranty (Recreational Use).
